Wood testing Systems
With the innovative wood testing systems from IML
you are always one step ahead. Convince yourself.
Showing all 14 results
-

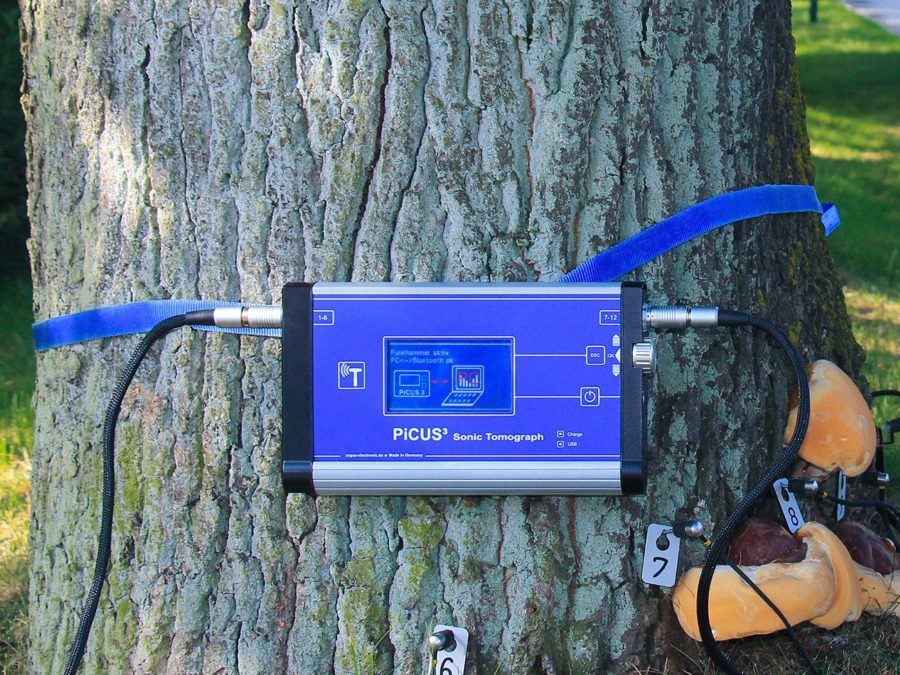

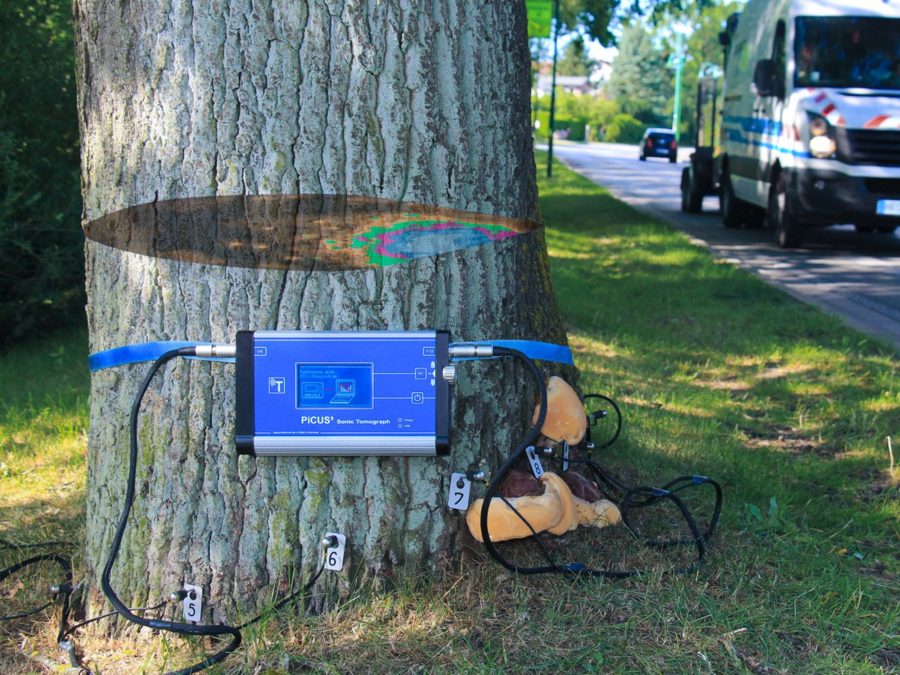

PiCUS Sonic Tomograph

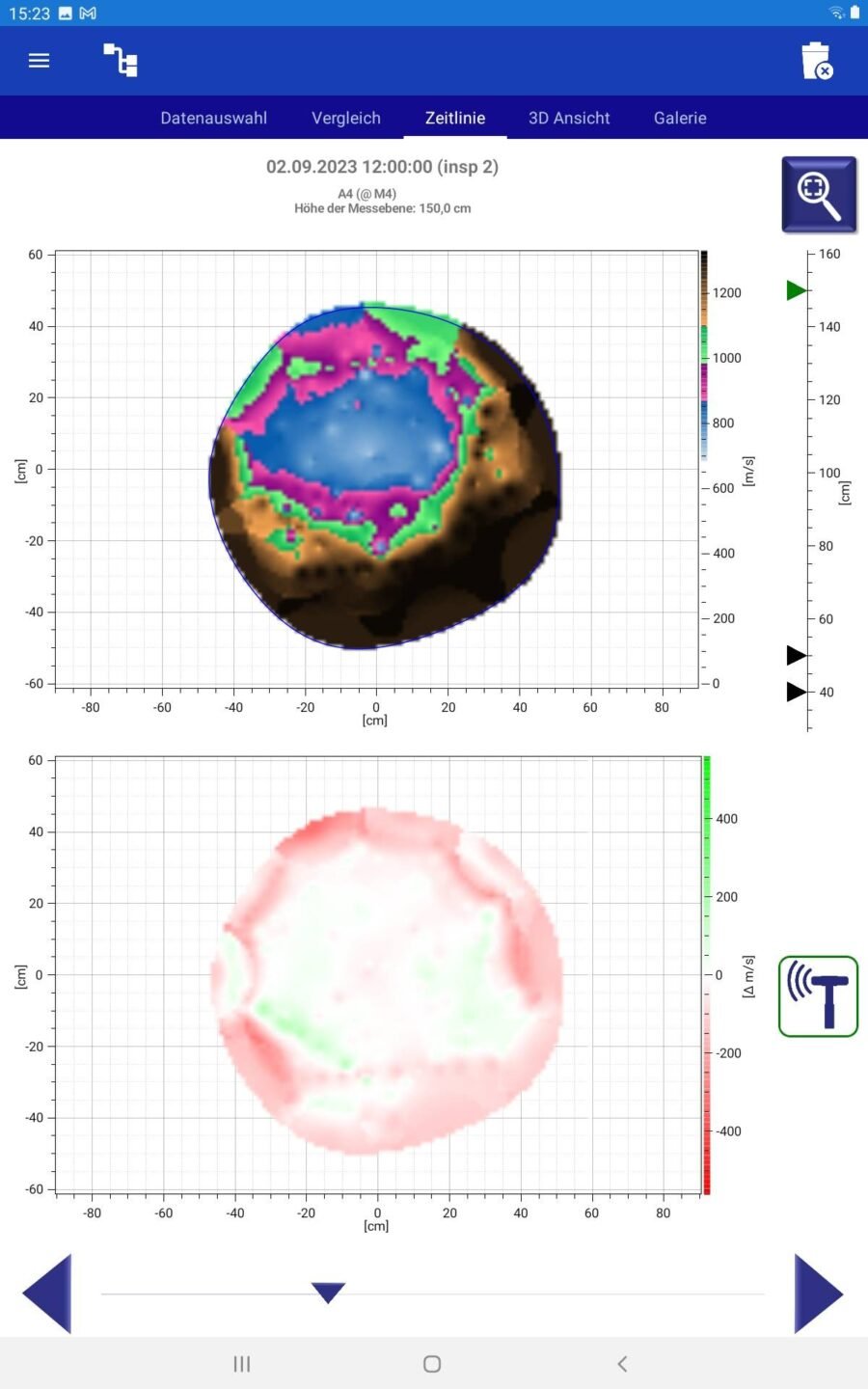

The PiCUS Sonic Tomograph analyses sonic waves in order to draw conclusions of the wood’s inner structure. In solid wood, sonic waves propagate fast. Defects within the wood interfere with the propagation of the waves and lead to lower calculated velocities. The different recorded velocities are displayed in varying colors in the tomogram.
-

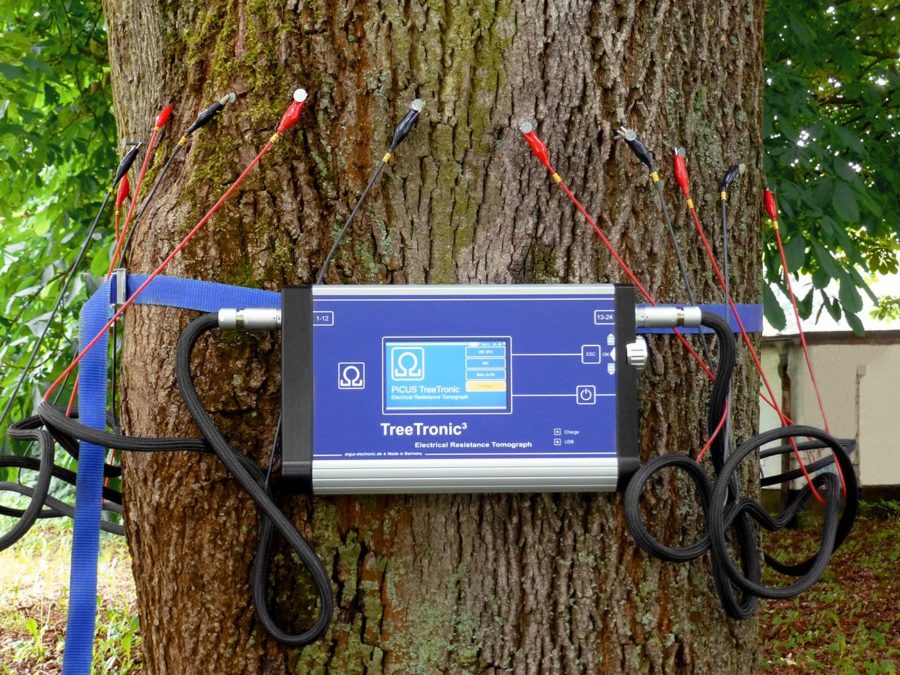

PiCUS TreeTronic
The PiCUS TreeTronic measures the electrical resistances in wood, which are influenced by the water content, the cell structure and the chemical composition. Since a rot usually has a high level of moisture and thus a low resistance, it can be recognized early with the PiCUS TreeTronic.
-

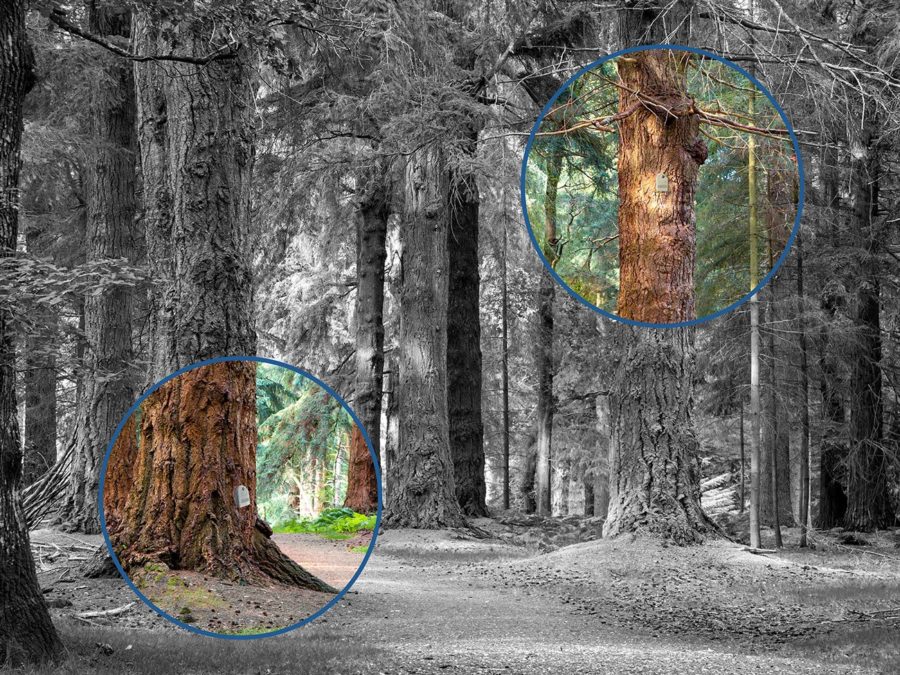

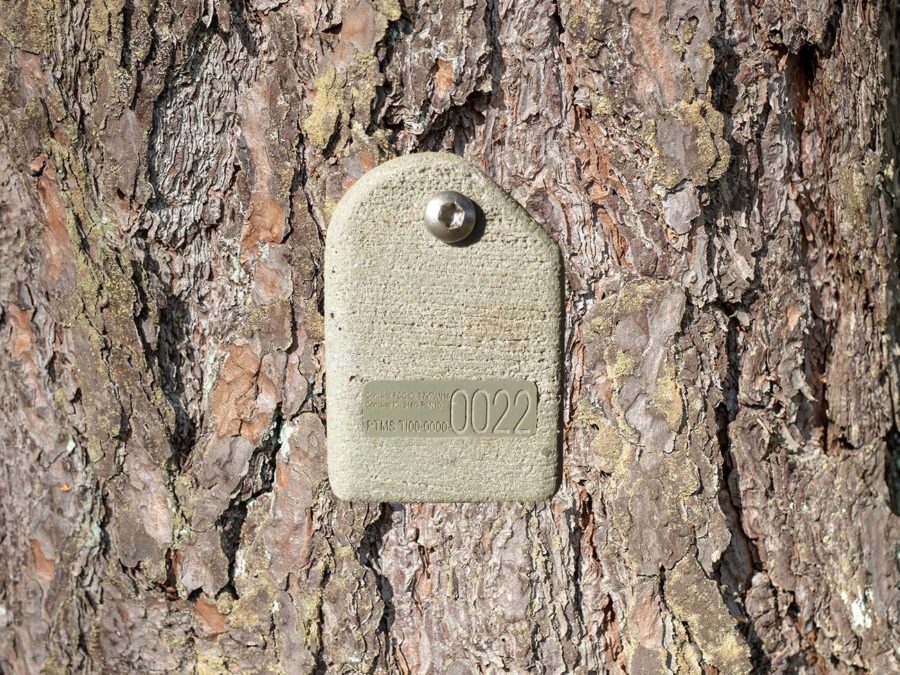

PiCUS TreeMotion
The wind reaction measurement with the PiCUS TreeMotion Sensor is used to assess the stability of trees as part of detailed investigations.
-

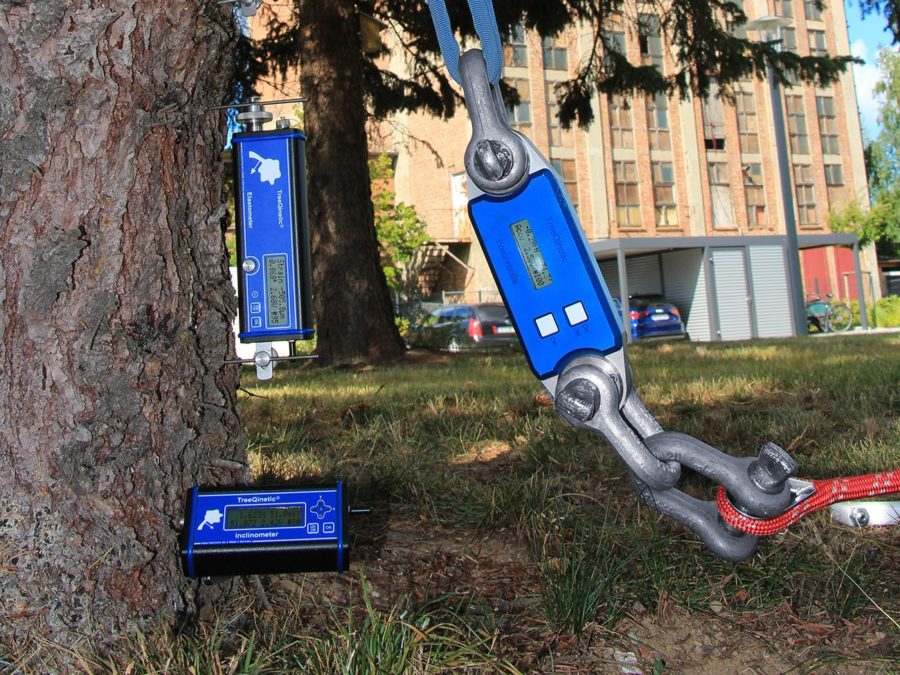

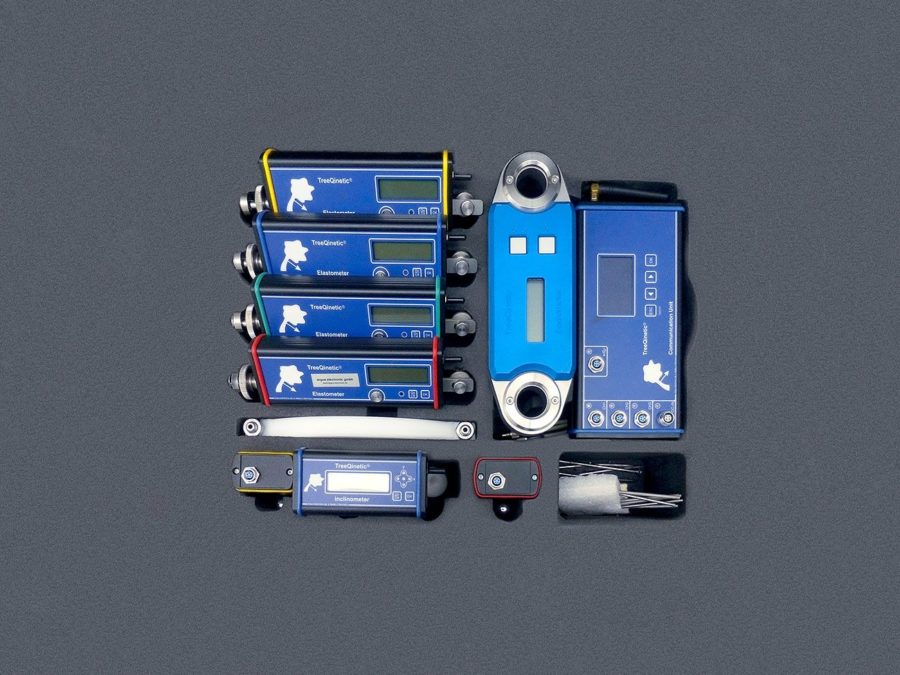

PiCUS TreeQinetic
The PiCUS TreeQinetic measuring system is used to perform tensile tests on trees. Tensile tests serve as part of detailed tree examinations to determine the break resistance and stability by measuring the tree’s reaction to an artificial wind substitute load.
-

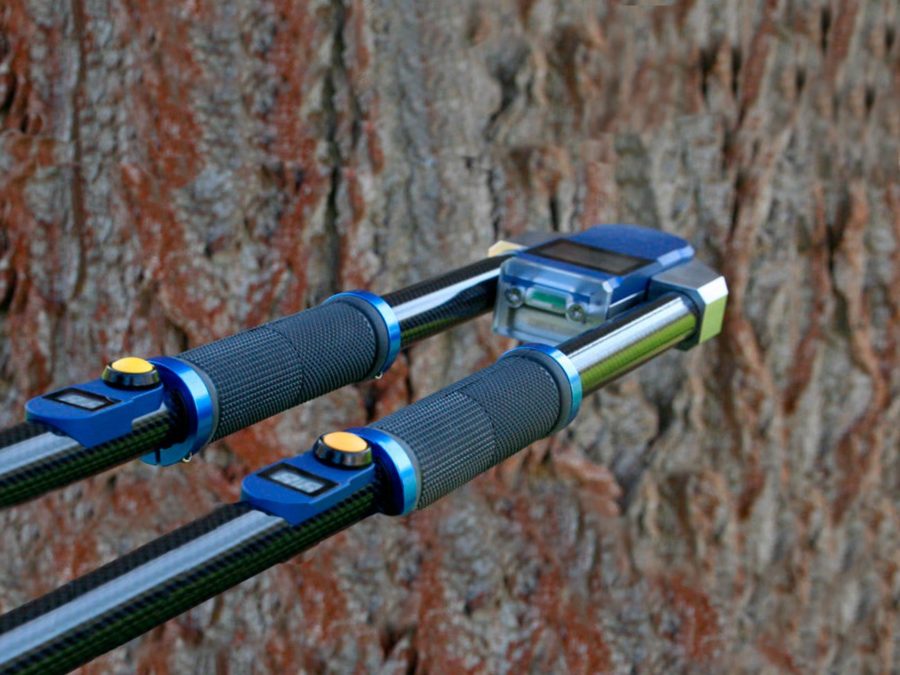

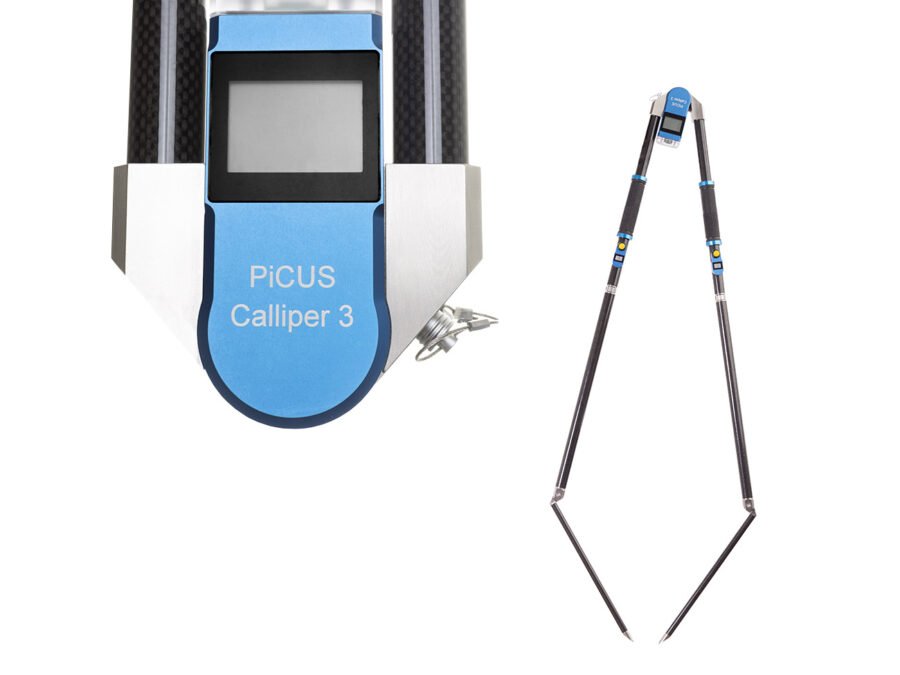

PiCUS Calliper
Both our tomography methods do require exact geometry information in regards to the positioning of all measuring points in order to calculate the sonic and electric resistance tomograms. The tomograms are more precise when the positioning of the measurement points is entered as accurate as possible. The PiCUS Calliper is an instrument that helps to measure the positions of all measuring points quickly and accurately.
-
PiCUS Wind Measurement System
The PiCUS wind measurement system measures wind speed and wind direction. The recorded data can be combined with other measurements, such as wind reaction measurements, and evaluated. The system can be used as an optional addition to other PiCUS devices or as a standalone wind measurement solution.
-

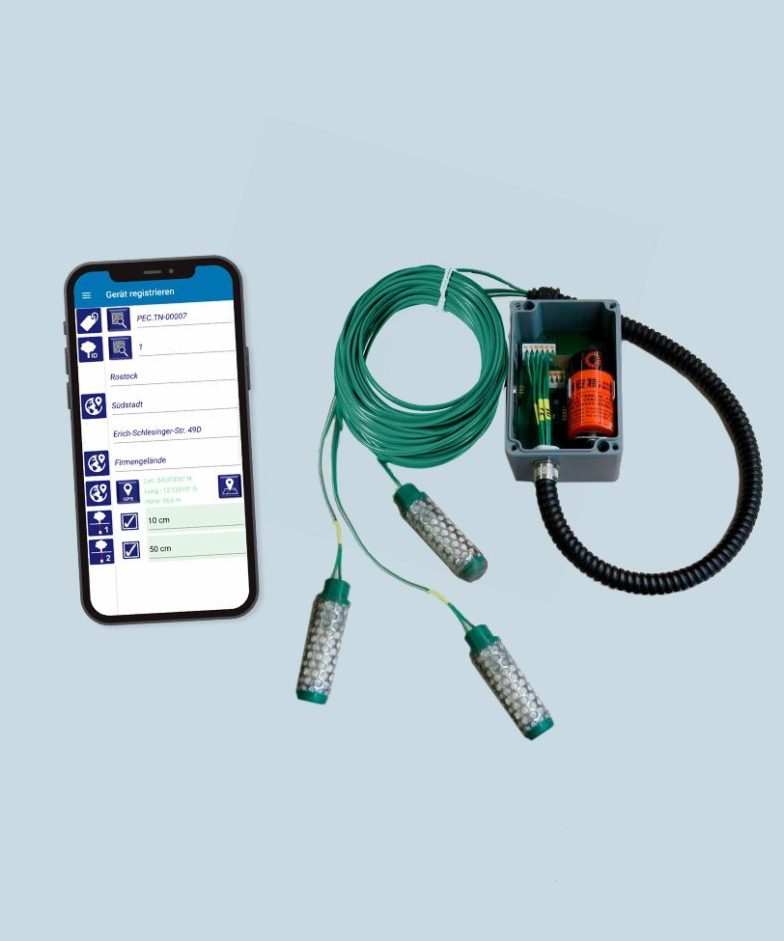

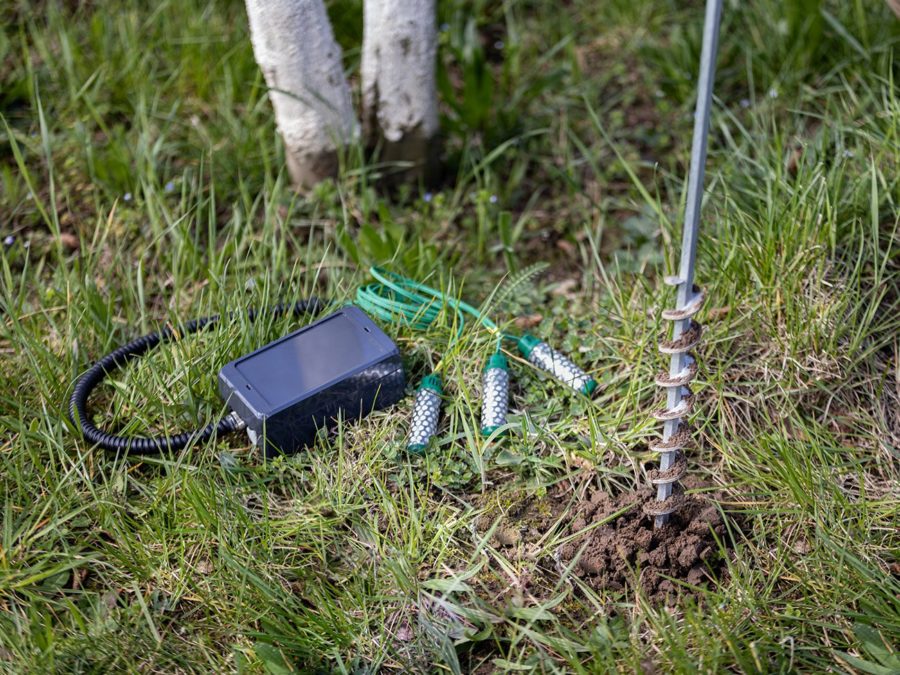

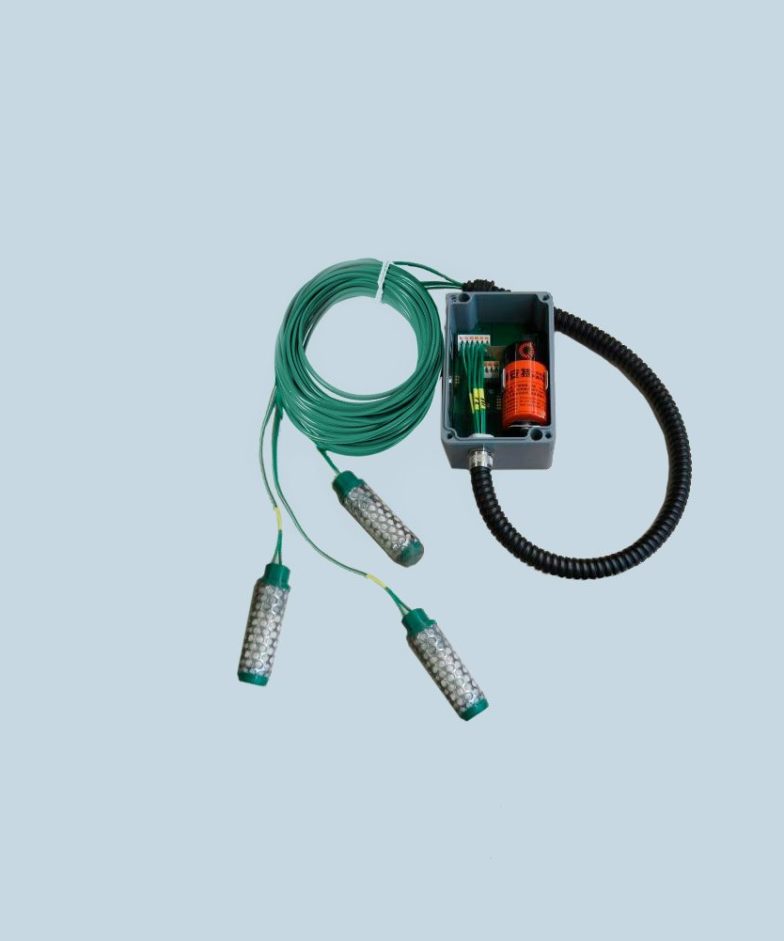

PiCUS Tension
The PiCUS Tension is a system installed autonomously underground or above ground at the location of your trees. It can accommodate up to seven sensors that measure soil water tension or volumetric water content of the soil, allowing for conclusions about water availability for your plants. The sensors can be positioned freely, either across the area or, for instance, within the root ball at various heights.
-
IML Cloud
The IML Environmental Cloud is an online data storage service provided by IML Electronic.
-
IML GIS
The browser-based IML GIS web application is the ideal tool for managing your cloud-connected IML devices. This map-based application enables long-term monitoring and comparative analyses across your entire fleet of devices.
Comprehensive filtering functions and automated report generation support the planning of tree care operations and help optimize workflows.
-

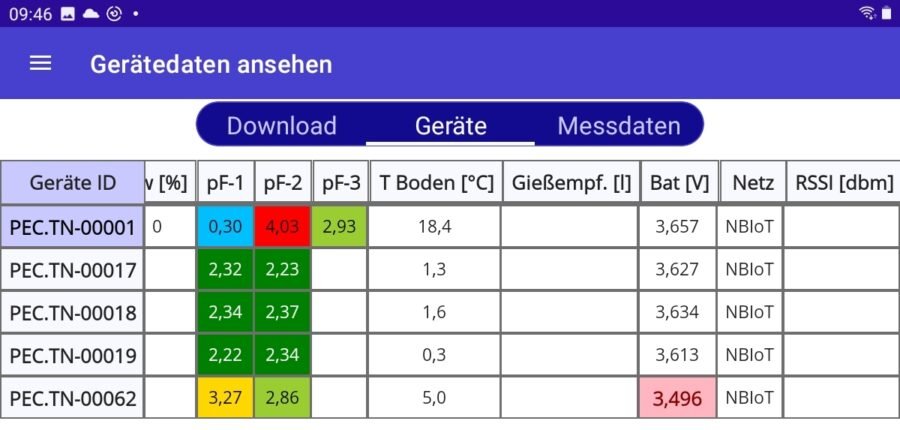

IML Cloud Devices
The IML Cloud Devices App connects field work with the data stored in the IML Cloud. It provides quick and easy access to current measurement data.
-
TMS.Software
The PC software for the PiCUS TreeMotion Sensor 3 (TMS 3) provides all necessary functions for managing and downloading measurement data from the sensors.
It includes all relevant tools for the evaluation and analysis of wind response measurements.
-
IML Tree Motion
This app is used to control the PiCUS Tree Motion Sensor 3 (PiCUS TMS 3) from IML Electronic.
The main function of this application is to start and stop the PiCUS TMS 3 measurements with the correct configuration.
-
IML TreeQinetic
The measurement software for the PiCUS TreeQinetic measuring system combines all the necessary functions for device control, measurement execution, and documentation. Available for Windows, Android, and iOS, it offers professionals maximum flexibility in tree inspection. With its intuitive operation and seamless integration into the IML Cloud, the app enables mobile data collection, documentation, and synchronization directly on-site.
-

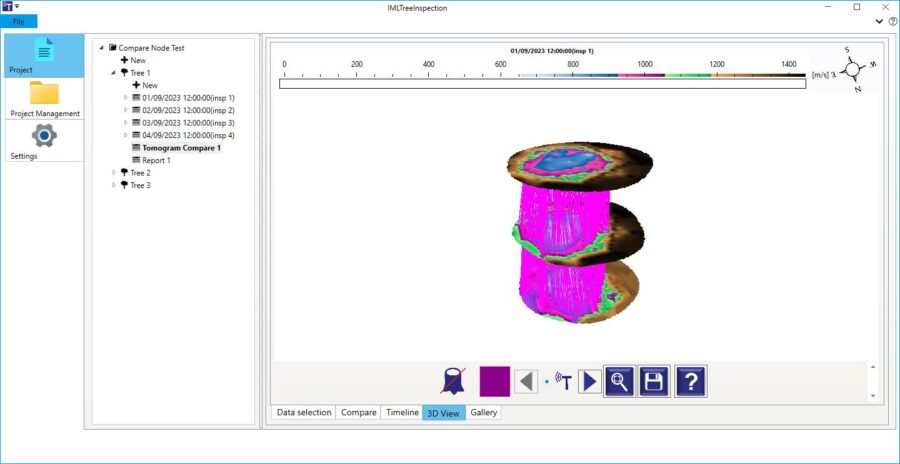

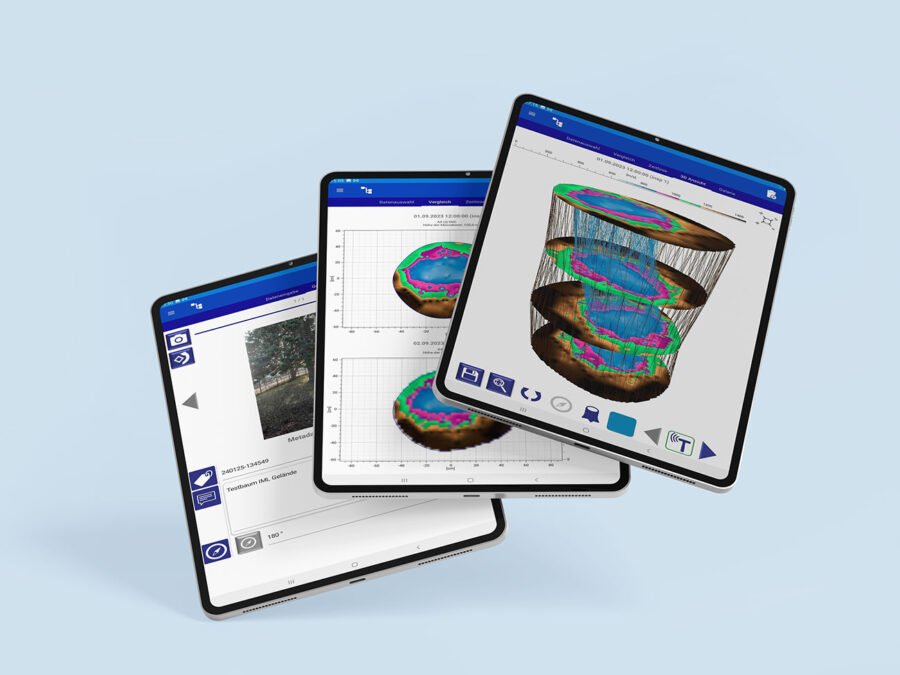

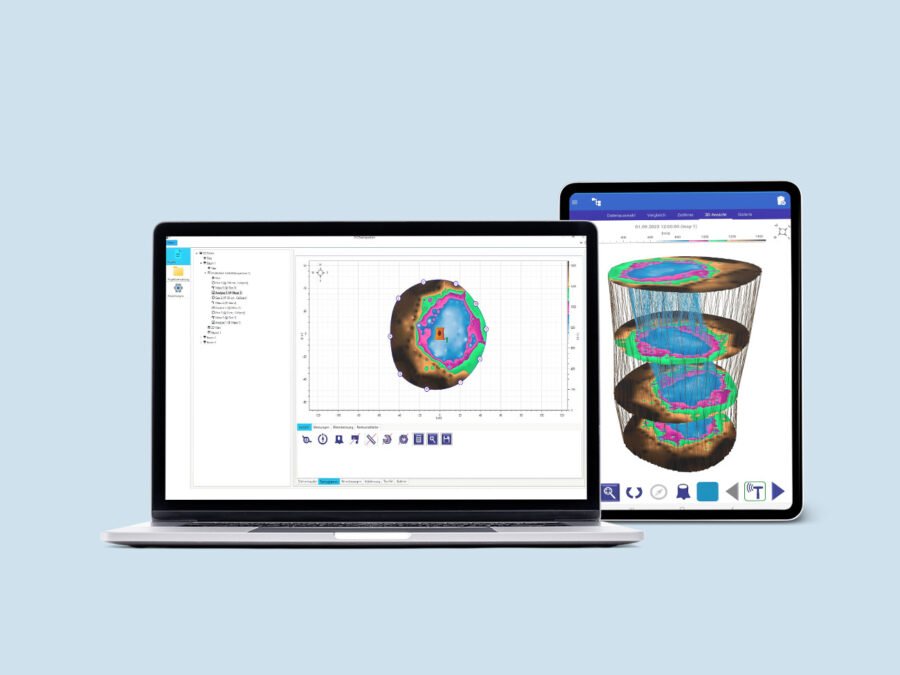

IML Tree Inspection Software
The IML Tree Inspection Software sets new standards in modern tree diagnostics. Developed for Windows PCs, Android, and iOS, it combines powerful tools for managing, analyzing, and documenting tree inspections in a user-friendly interface. The software efficiently supports professionals in conducting tree inspections and long-term monitoring of tree health.
With its intuitive operation, the software enables mobile data collection using PiCUS acoustic and resistance tomographs directly on-site. Seamless integration with the IML Cloud allows for hassle-free synchronization across different platforms.
