PiCUS Calliper

Categories: ,

Both our tomography methods do require exact geometry information in regards to the positioning of all measuring points in order to calculate the sonic and electric resistance tomograms. The tomograms are more precise when the positioning of the measurement points is entered as accurate as possible. The PiCUS Calliper is an instrument that helps to measure the positions of all measuring points quickly and accurately.

Request now!

Your product consultant

Marcus Pusch

Technical Sales

Your product consultant

Fabian Hunger

Marketing & Sales

Callback service

Do you have questions?

    Detailed information on handling user data can be found in our privacy policy.

    Description

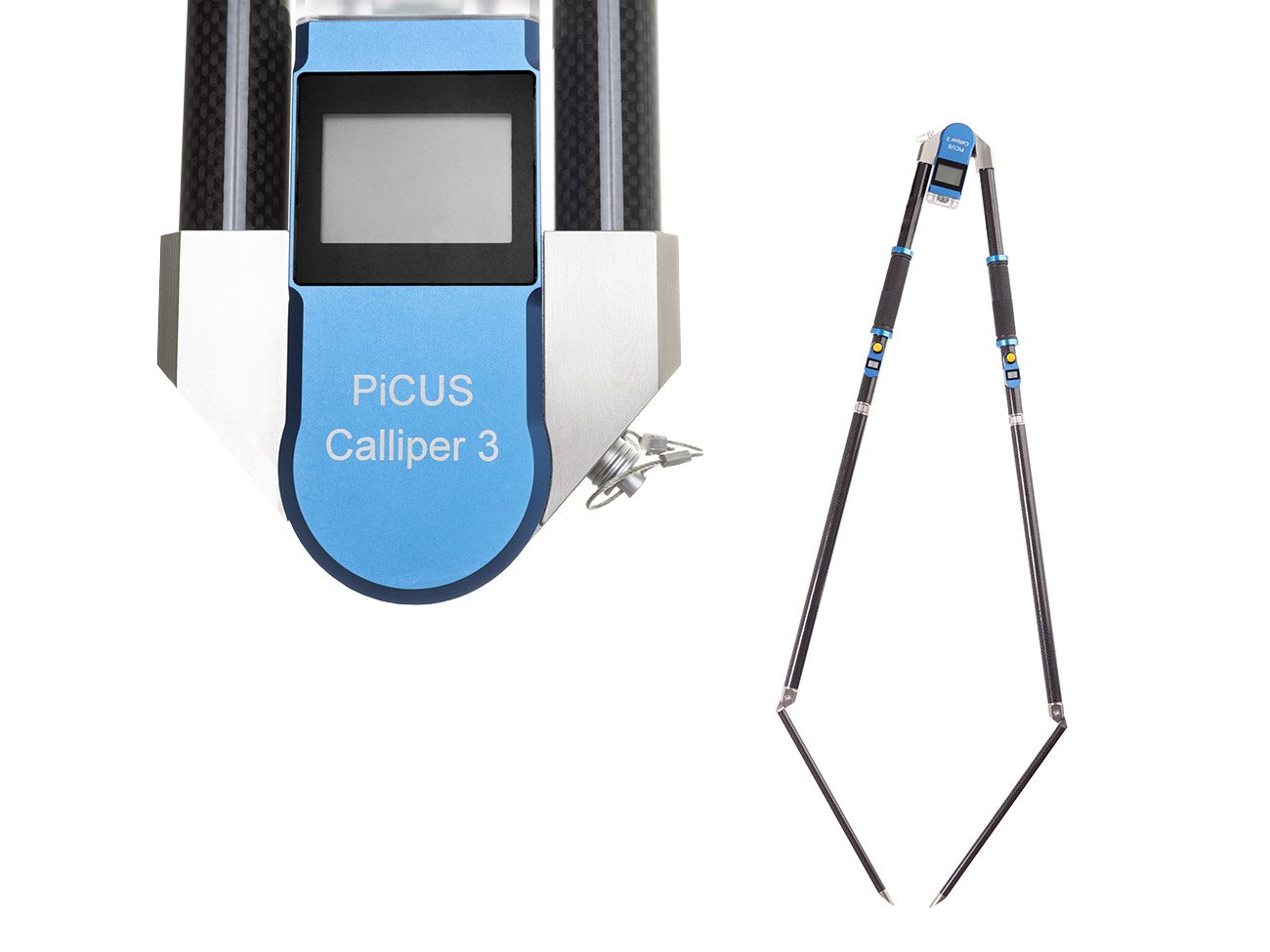

    PiCUS Calliper Product description

    The triangulation method is an accurate and efficient way to determine the geometry of the measurement plane for PiCUS tomography.

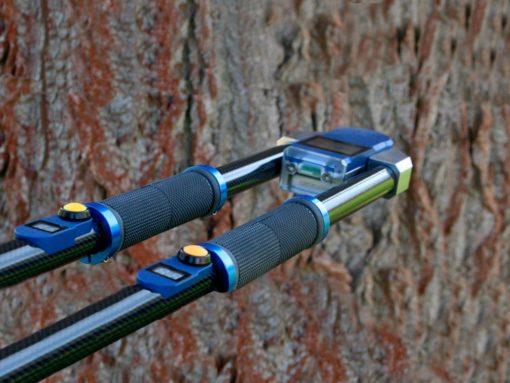

    Before a PiCUS tomography measurement can be performed, the geometry of the tree at the measurement plane must first be determined. The PiCUS Calliper enables easy operation and precise implementation of the triangulation method, even for complex tree cross sectional shapes.

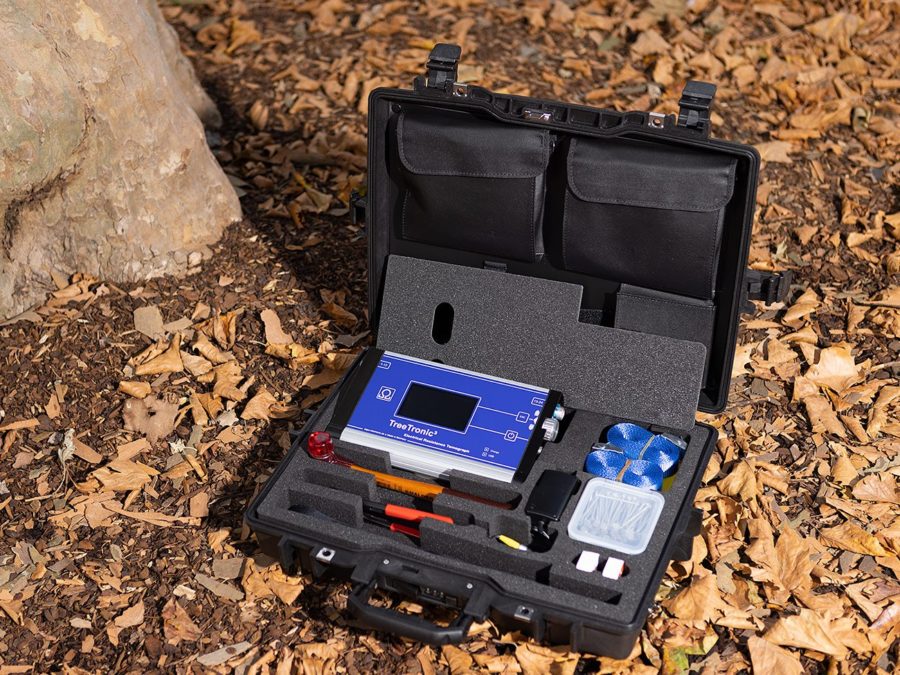

    The more accurately the geometry is determined, the more accurate the resulting tomogram will be. Both the PiCUS TreeTronic 3 and the PiCUS Sonic Tomograph 3 are fully compatible with the PiCUS Calliper. As an option, the PiCUS Calliper can be integrated directly into the tomograph’s transport case, allowing you to carry everything you need for a measurement in one compact system.

    Features of the PiCUS Calliper

    • Bluetooth connectivity for communication with a PC

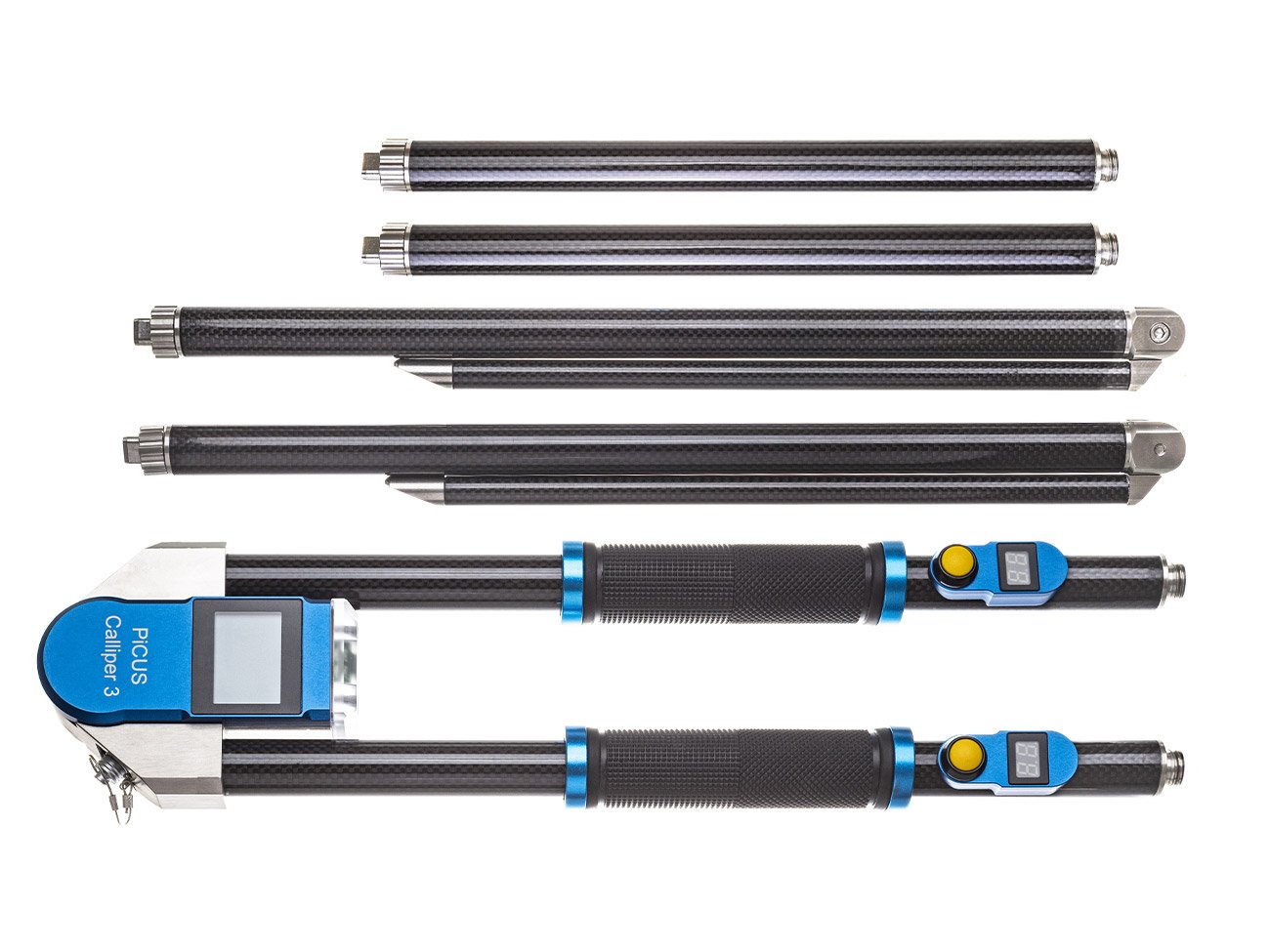

    • Available in two configurable sizes. The arms can be extended as required.
    • An XL version of the PiCUS Calliper is also available.
    • Large working range: up to 1800 mm, 2150 mm, or up to 2700 mm with the XL version.
    • Automatic, fast, and precise acquisition of all measurement point positions.
    • High level of user comfort with easy to read displays, ergonomic buttons, and intuitive operation.
    • Lightweight carbon fiber tubes for reduced weight.
    PiCUS Calliper (pdf)
    PiCUS Product Range (pdf)

    Contents

    Contents (Starter Paket):

    • PiCUS Calliper 3 folding version
    • Power supply
    • Transport case

    Measuring principle

    The Measuring principle:

    The geometry of a tree at the measuring level can be recorded precisely using a triangulation method. The level is split into many triangles, the lengths of all sides of which are measured. Each MP is a corner of a triangle. Two MP are part of all the triangles in a measurement. The line between these two points is called the “baseline”. Theory of triangulation method The position of the third corner of the triangle is calculated using the length of the sides. Based on one or three baselines, the x/y positions of all MP can be calculated.

    Software

    The IML Tree Inspection Software sets new standards in modern tree diagnostics. Developed for Windows PCs, Android, and iOS, it combines powerful tools for managing, analyzing, and documenting tree inspections in a user-friendly interface. The software efficiently supports professionals in conducting tree inspections and monitoring tree health over the long term. With its intuitive operation, the software enables mobile data acquisition directly on-site using PiCUS sonic and resistive tomographs. Seamless integration into the IML Cloud allows for trouble-free synchronization across various platforms.



    Compatibility:

    • Fully compatible with PiCUS Sonic Tomograph 3 (sonic tomograph), PiCUS TreeTronic 3 (resistance tomograph), and PICUS Calliper 3
    • Support for older 3rd generation tomographs via Bluetooth Classic and USB (where available)



    To Software





    Reviews

    There are no reviews yet.

    Be the first to review “PiCUS Calliper”

    Your email address will not be published. Required fields are marked *

    You may also like…

    IML Cloud

    IML Cloud

    The IML Environmental Cloud is an online data storage service provided by IML Electronic.

    PiCUS TensionPiCUS Tension

    PiCUS Tension

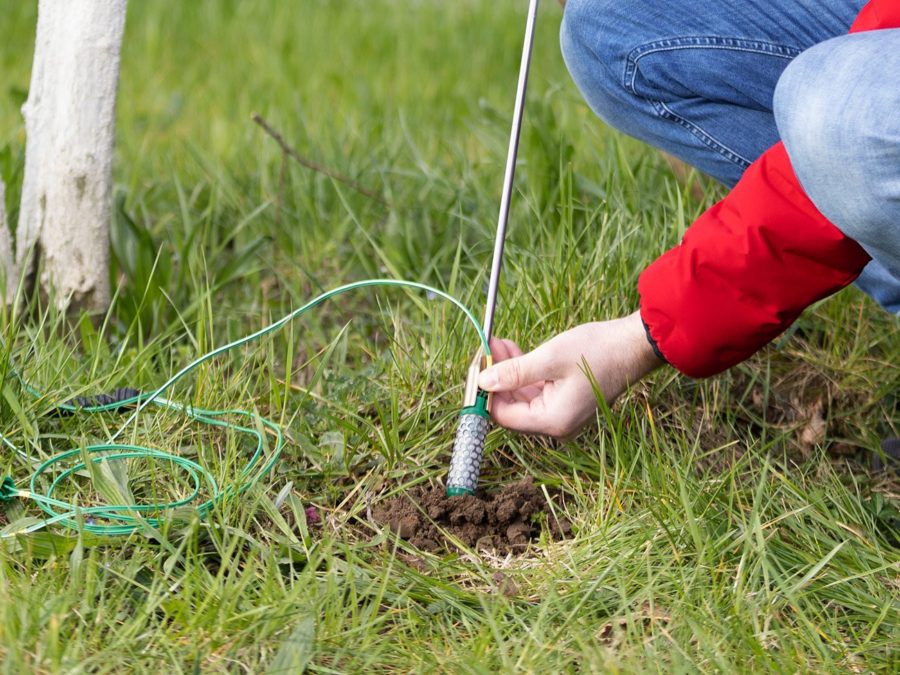

    The PiCUS Tension is a system installed autonomously underground or above ground at the location of your trees. It can accommodate up to seven sensors that measure soil water tension or volumetric water content of the soil, allowing for conclusions about water availability for your plants. The sensors can be positioned freely, either across the area or, for instance, within the root ball at various heights.
