Dosistar V

Plus 19% VAT
Delivery Time: not specified

DOSISTAR V is a device for controlling the power of DC pumps on vehicles. The corresponding flow rate is set via an adjusting knob, which can be checked optically by a float flow sensor. Passive or active switches can be used for the PICK-UP switch. This means that the dosing can be automatically interrupted.

Callback service

Do you have questions?

    Detailed information on handling user data can be found in our privacy policy.

    Description

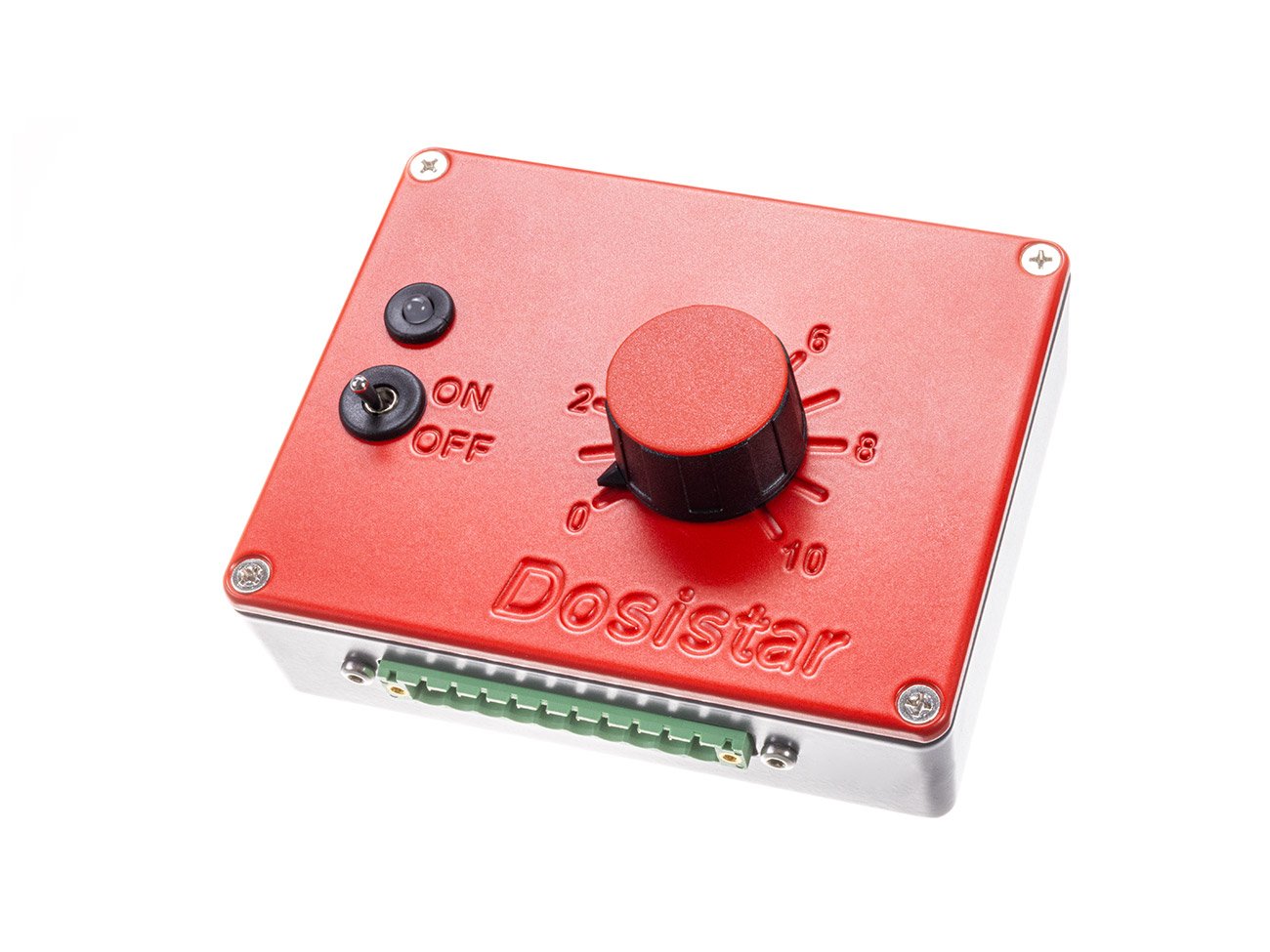

    DOSISTAR V is a device for controlling the power of DC pumps on vehicles. The corresponding flow rate is set via an adjusting knob, which can be checked optically by a float flow sensor. Passive or active switches can be used for the PICK-UP switch. This means that the dosing can be automatically interrupted.

    The device is built into a stable metal housing. The customer determines the color of the front panel. Installation is simple and can be done by the customer or the field technician. Stationary operation is possible with an appropriate power supply unit.

    Areas of application

    • Control of medium power DC motors
    • Fan control, brightness control, motor control
    • Dosing of liquids on vehicles
    • Feed preservation

    Technical Data

    input voltage range VCC12V – 24V DC
    max. power150W (12V) / 300W (24V)
    max. current load9A constant; 12A peak
    power control range0 – 100%
    reverse polarity protectionYes
    overload protectionYes
    connection of Pick-up switchYes, STOP on activated Pick-up
    dimensions120 x 95 x 35 mm
